Lismore Geology



 (Quartz reef in ironstone at Lake Tooliorook. How did that get there???!)

Lismore geology

(An asterisk* indicates where the formation can be seen around Lismore)(And in green when within 100km of Lismore)

Below is a draft version. It is guaranteed not to be accurate. We welcome any corrections and additions. "contact us".



Our story begins a while ago.......

4-5 Billion years ago - A mass of dust from exploded super nova (forming heavy elements), small stars (lighter elements) gathered to form our sun and planets.  For the first 1 billion years it was heavily hit by asteroids.

The earth finally settled to form a core, mantle, crust, water, and atmosphere.

Land masses drifted over the surface of the earth.

A link at the bottom of this page gives an animation of this.

500million years ago (mya) (Ordovician and Silurian era) - What is now Victoria was part of a land mass to the north of the equator.

The only Victorian rocks exposed from then is some ancient basalt at Waratah Bay near Wilson's prom.

It is possible that there are Cambrian rocks exposed by the Stavely/Moyston fault between Wickliffe and Chatsworth.

There are some rocks to the south of Ballarat were forming as a sediment under deep ocean. Later cracks formed in this rock which filled with seams of gold bearing quartz. It is possible to find slate and quartz from then in the gold mining mullock heaps from Ballarat to Bendigo.

400 mya (Devonian era) - Victoria is still part of the land mass of Pangea which has drifted south of the equator.

There were shallow water corals which are now exposed as limestone at Waratah Bay.

Granite plutons formed deep underground in an area which is now north from Lismore to Linton and Stawell. For the granite to cool slowly underground (to form its large crystals)  there must have been maybe 1 km of rock above which has now eroded away.

Granite has formed  Mt Kinross (Wallinduc), Mt Emu (north of Skipton), Mt Cole (Beaufort).

Browns Waterholes has cut a channel down through to the granite, and it is also exposed in the highway cutting near the cemetery turnoff.The granite of the area varies in texture and in colour from grey to pink to white.



(Granite in Browns Waterholes, north of Heriot St)

(There is no granite around Derrinallum, just young basalt over limestone and deeper sediments.)



 Eventually the land, part of which is now Australia was located over south pole. (Some ancient soils (called cratons) still exists in  western and southern Australia and is roughly where present day iron ore mining is happening). This was all part of “Gondwana”. The area of the south pole was not frozen at that stage.

340 to 260 mya (Carboniferous, Late Permian) - There were ice caps over exposed land and gouging by glaciers near Lake Eppalock and deposits near Bacchus Marsh.

200 mya (Late Triassic) - No ice around the south pole. There was a mass extinction of early life then.

150 mya (Jurassic) - Gondwana started to drift apart to form Africa, South America, Antarctica, India, and Australia. Parts of all of them share similar ancient soils, plants and animals. Kangaroo grass on some roadsides is also in many of these continents and probably was there when they formed Gondwana.

It may be that our local long necked tortoise started to evolve at about this time, and the yabbie started a bit earlier.



95 mya (Mid Cretaceous) - The area was uplifted above water level and much of the surface rock was washed away to form what is now the Otways and beyond. Dinasaurs were evolving and some remains are found in the rocks of the Otways, at dinosaur cove near Princetown.

65 mya (Late Cretaceous/Tertiary) - Mass extinction of dinosaurs and early development of mammals.

35 mya (Oligocene) - Australia drifts north from Antarctica. Shallow marine limestone forms around Port Campbell, Peterborough. Anglesea coal was formed by then.

20mya(Tertiary/ Pliocene) -  Latrobe Valley coal was formed.

 Large mountain ranges eroded to form replacement sedimentary rocks and soils to cover again the granite and limestone.

Some are northwest of Lismore* and on the northeast shore of lake Tooliorook?.

This is possibly a “Pliocene Black Rock sandstone”. This or a similar rock extends around the the north of Lismore. Locally we call it the "boomerang ridge". It apparently extends underground and around the lakes as far as Leslie Manor.



(Pliocene Black rock sandstone, Lake Tooliorook)

This possibly was from the erosion of old mountain ranges to the north.



(Laterite at road cutting on Skipton Rd, 2.5 km north of Hamilton hwy)

At some stage the area under water was uplifted and supported plants and wildlife.


10mya (Miocene)- The area west and south of Lismore and east up to Rokewood was under a shallow sea and again limestone was deposited.This was called the "Otway basin".The sea probably reached to Lismore at that stage, then gradually receded.

The Limestone on the southern shore of Lake Tooliorook* and Struan dam* This can be quite thick. Another deeper band of limestone called “Gellibrand marl” runs at various depths under much of the surface from Lismore to the coast.



The limestone layer provides water for the Gellibrand River and Otway Water supply to Lismore.



(Limestone layer at Struan dam, Lower Darlington Rd)


3.6mya -

Lava vents flowed over old valleys from Melbourne to Hamilton to form the present basalt clay plains* Also Mt Widderin, Mt Hamilton, Mt Vite Vite. This took millions of years.

Lava flows to the east of Lismore to Cressy. This is older and different composition the basalt beyond the stony rises to the west of Derrinallum to Mortlake*

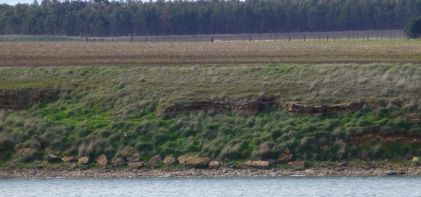

(basalt layer over limestone layer exposed on east side of Struan dam)



2mya - Lava flows to the west of Derrinallum to Mortlake. The stony rises flowed over this at a later stage. The Mount Emu Creek cut a channel through this. It can be seen where the Mt Emu Ck crosses the highway at Darlington*.

 300,000 to 500,000 ya - Recent research suggests that Mount Elephant, Mt Widderin, Mt Rouse all erupted about now.

100,000 ya - The area was lush, with giant kangaroos, wombat and diprotodons roaming.

Fossil of diprotodon tooth was found on west shore of L. Corangamite.* Other fossils and tracks have been found in the sediments of other local lakes.



(Cast of Diprotonon fossil tooth found west side L.Corangamite 1967)


40,000ya - Aborigines settled in Australia, later moving south and leaving middens of freshwater mussel shells around the early (Lake Corangamite and Lake Rosine?) and later lakes*.Pollen and diatom remains in the lake beds indicate that the climate was still quite lush.

20,000ya - Mt Elephant possibly erupted now to form a scoria cone and later the lava flows of the stony rises for 10km to the north, west and south*. The stony rises lava flows from mt Widderin and Mt Elephant probably meet near Hannah's Rd.The climate went through a dry period, with long periods of dry lakes.

Research published in 2016 states that eruption of Mount Elephant can be put at 500,000 years ago, similar to Mt Widderin and Mt Rouse.

Aerial surveys show an ancient river valley, now covered by basalt, flowing from Skipton southwards past Camperdown.



(Basalt quarry west of Camperdown Rd, 2km south of Derrinallum)



The Mount Elephant scoria is described as “nepheline hawiites with phenocrysts of olivine and other crystals.”

The lava possibly blocked Salt Ck to form Lake Tooliorook*. Other lakes also formed in the district.

Recently, when lakes dried up the dust from their beds blew to form lunettes to the southwest of each lake. One is on the approach to Lake Tooliorook camping ground*, and to the southwest of Lake Gnarpurt*.

The dust storms of 1983, 2007 (and most summers) are part of this process.

To be continued.........

Geological map



(Geological map of Lismore.)
Q=quarternary, D=devonian, T=tertiary: v=volcanic, gd=granodiorite, pb=ferruginous sand
To download a free, later more detailed map click here



Rock Profiles



Rock profile under Lismore

Note that the town sits on granite. The only traces found of the older rocks originally over the granite are in the Gala gravel pit.

The cap to north of Lismore was a lake bed, and the limestone to south of Lismore was sea bed.





Lake Tooliorook rock profile







Derrinallum rock profile

note there is no granite. The stony rises sits on the plains basalt. This sits on the limestone sea bed, which sits on the older base rock of which there is no trace but which may be similar to the otways.



Oldest local rocks

550mya Cambrian - Andesite, Gneiss and schist at shallow depth and creek crossings near Chatsworth/Wickliff/Willaura.

480mya Ordovician - Slate and quartz in mullock heaps dug looking for gold from Cape Clear to Bendigo.

440mya Silurian - Sandstone in creek crossing Woorndoo, sandstone hills Cape Clear to Ballarat

400mya Devonian - Granodiorite in creeks and cuttings from Lismore to Linton.
